CTS Turbo - FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3

  • Vendor CTS Turbo
  • Part # HW-036
Regular price $99.99
Out of stock

Secure Checkout

100% Secure SSL Encryption to Protect Your Info

Trusted Payment Options

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

We accept Visa, MasterCard, PayPal, Apple Pay & More

Hassle-Free 30-Day Returns

Return unopened items within 30 days for a refund or exchange.

CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below).  This kit is designed to eliminate the clunk that is commonly found on MK5’s and MK6’s due to the stretching of OEM bolts stretching and failing.  Our kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.

Features:

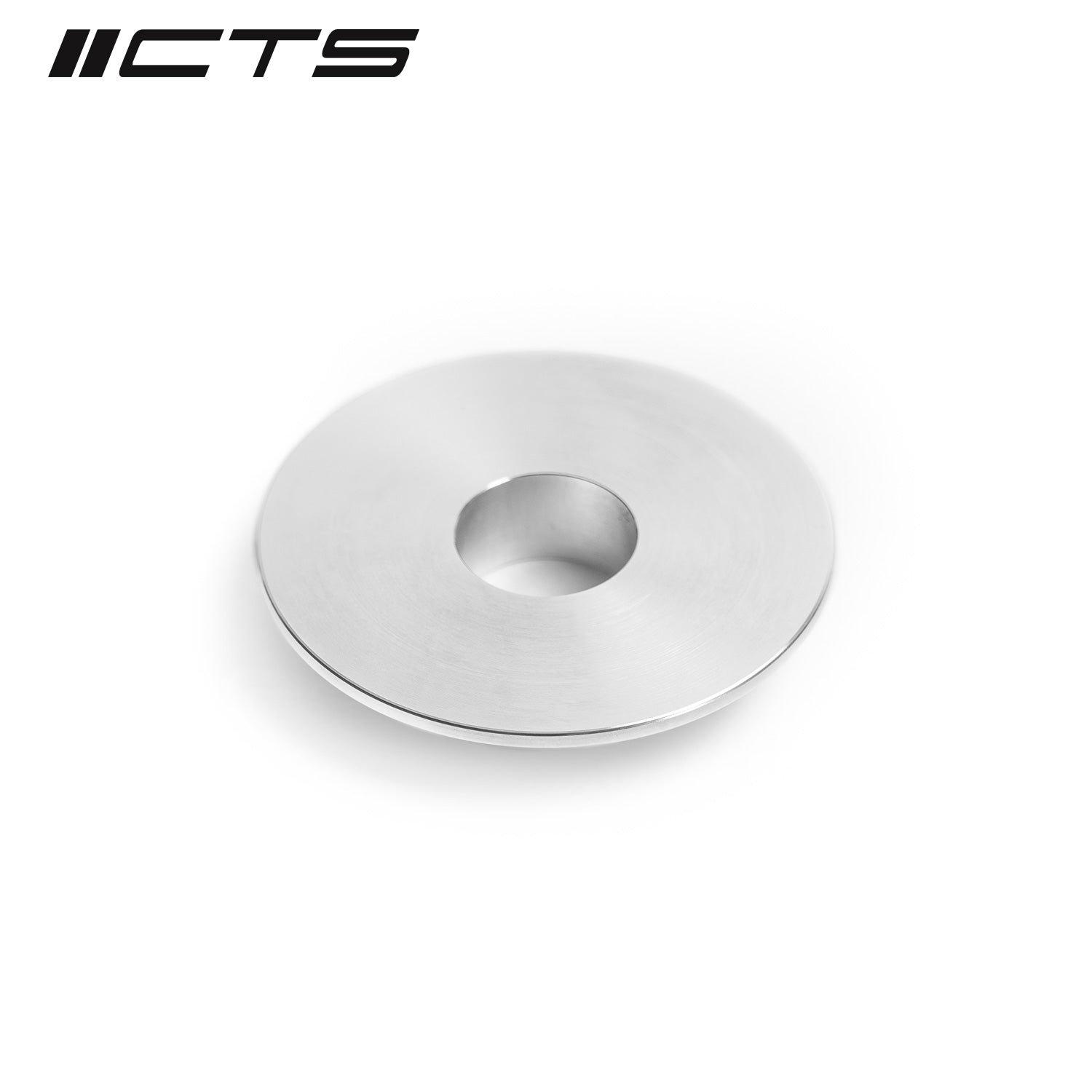

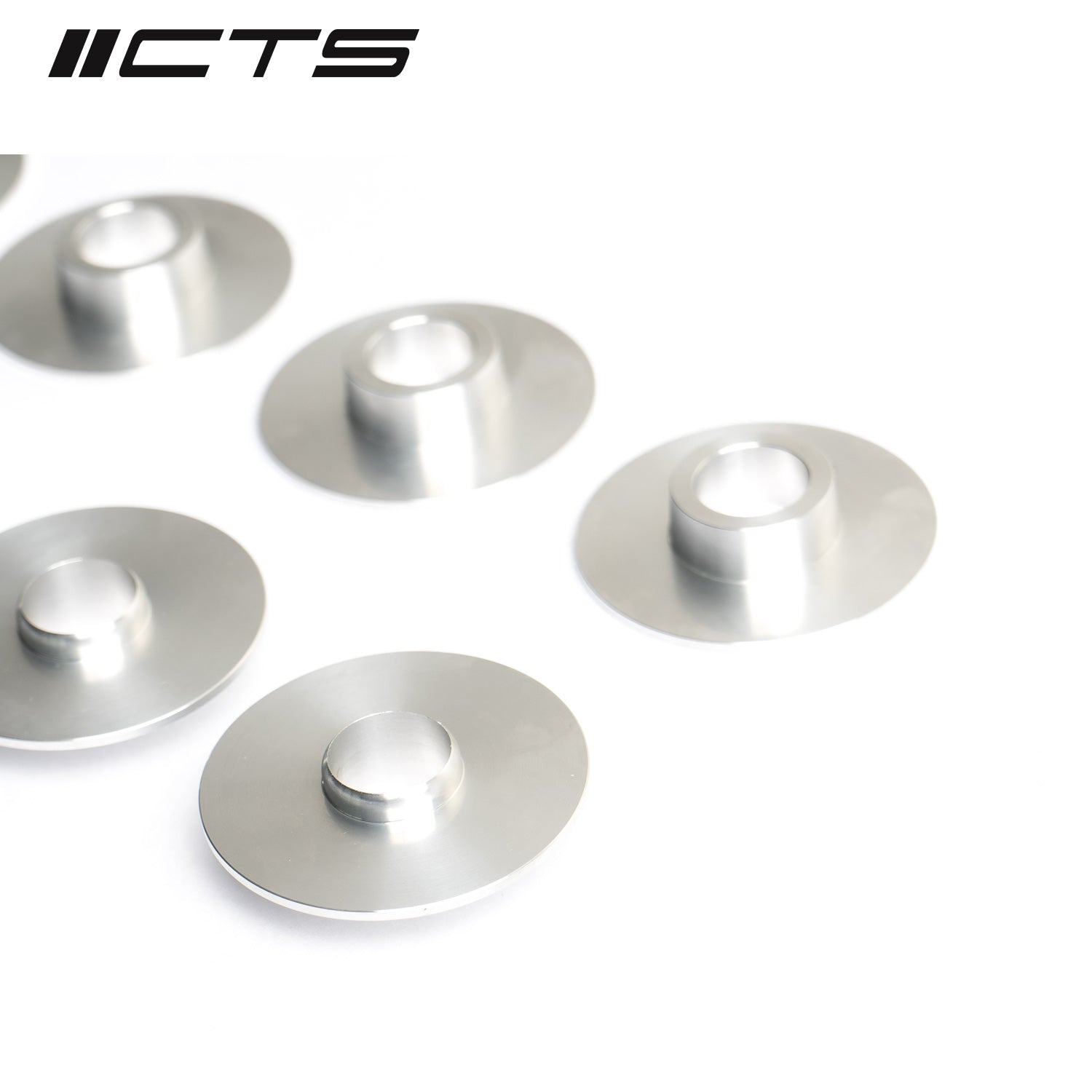

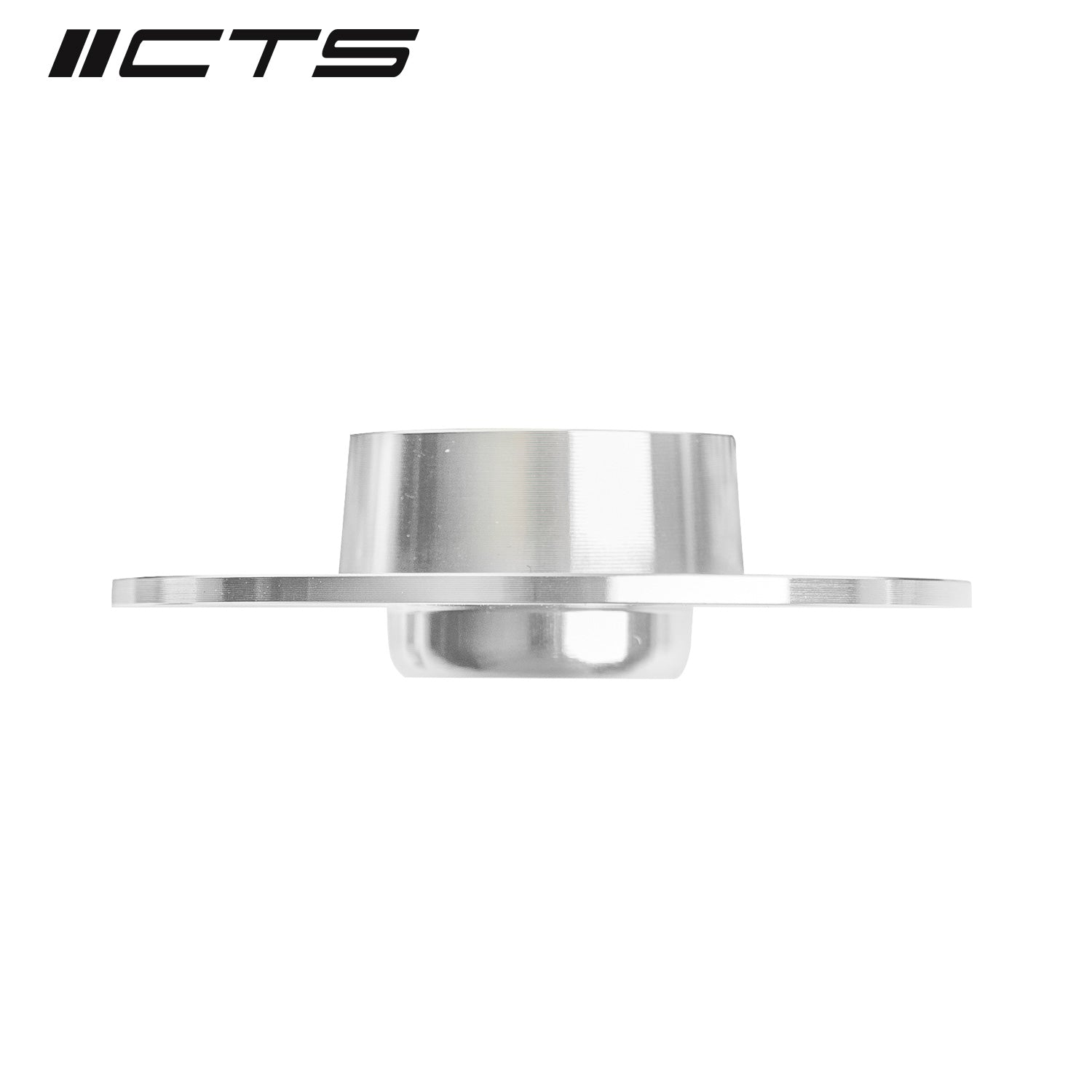

  • Interlocking subframe shims center the front subframe to the body
  • Machined in house from T6061 Billet aluminum

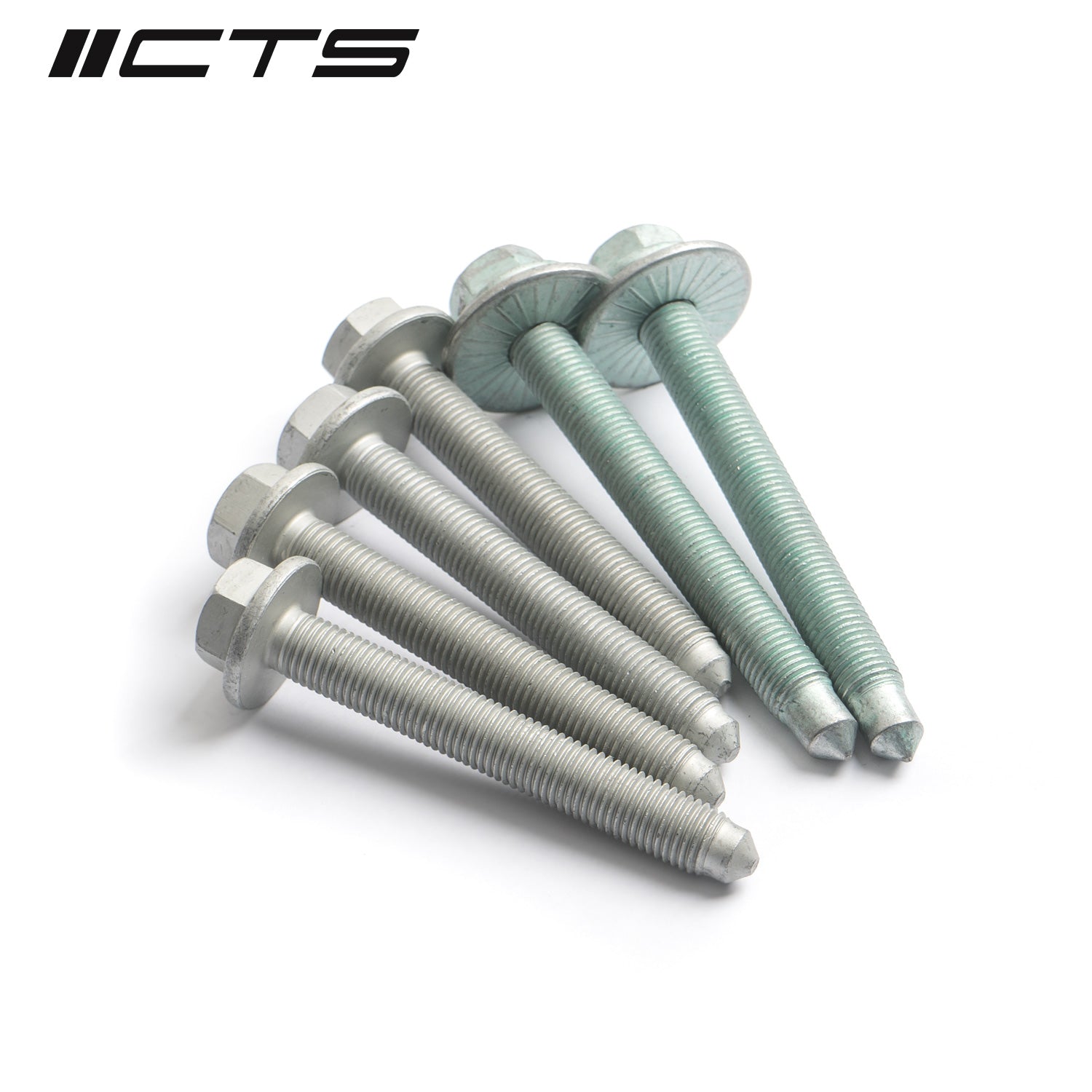

  • OE replacement stretch bolts
  • Eliminates subframe clunks and shifting

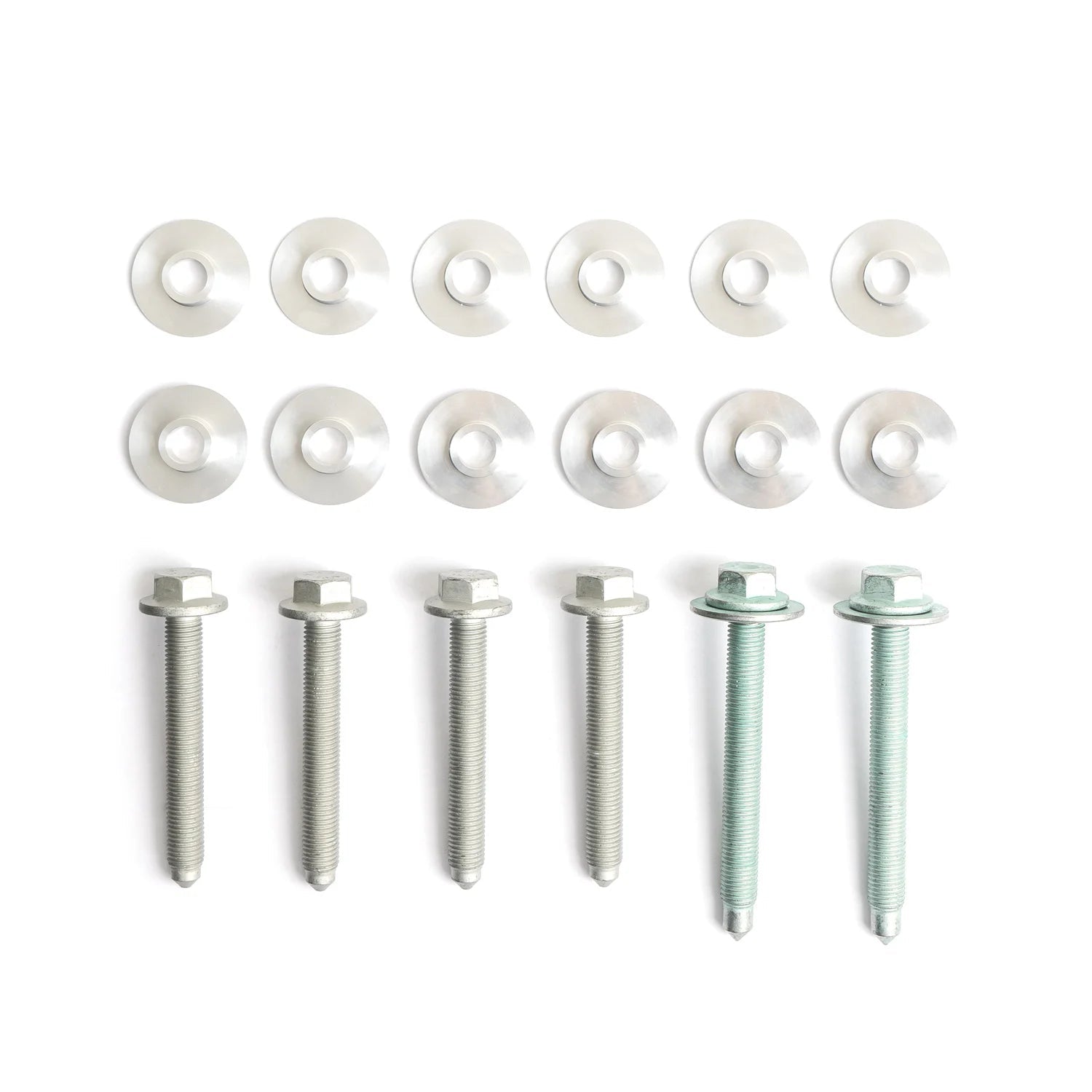

Kit Components:
  • 6 x Upper Insert
  • 6 x Lower Insert
  • 4 x Short OE Bolts
  • 2 x  Long OE Bolts

Torque specs:

  • 18mm bolts = 70Nm+180deg (do not re-use)
  • 16mm bolts = 50Nm + 90deg (can be re-used once)
  • 13mm bolts = 20Nm + 90deg (can be re-used once)

Fitment:

  • MK5 GTI/GLI/R32/Jetta/Rabbit
  • MK6 GTI/Golf R/Golf – Aluminum Subframe only, will not fit Jettas with steel subframe
  • 8P Audi A3/S3
  • B6 Passat/Passat CC

Note: wheel alignment required after installation.
