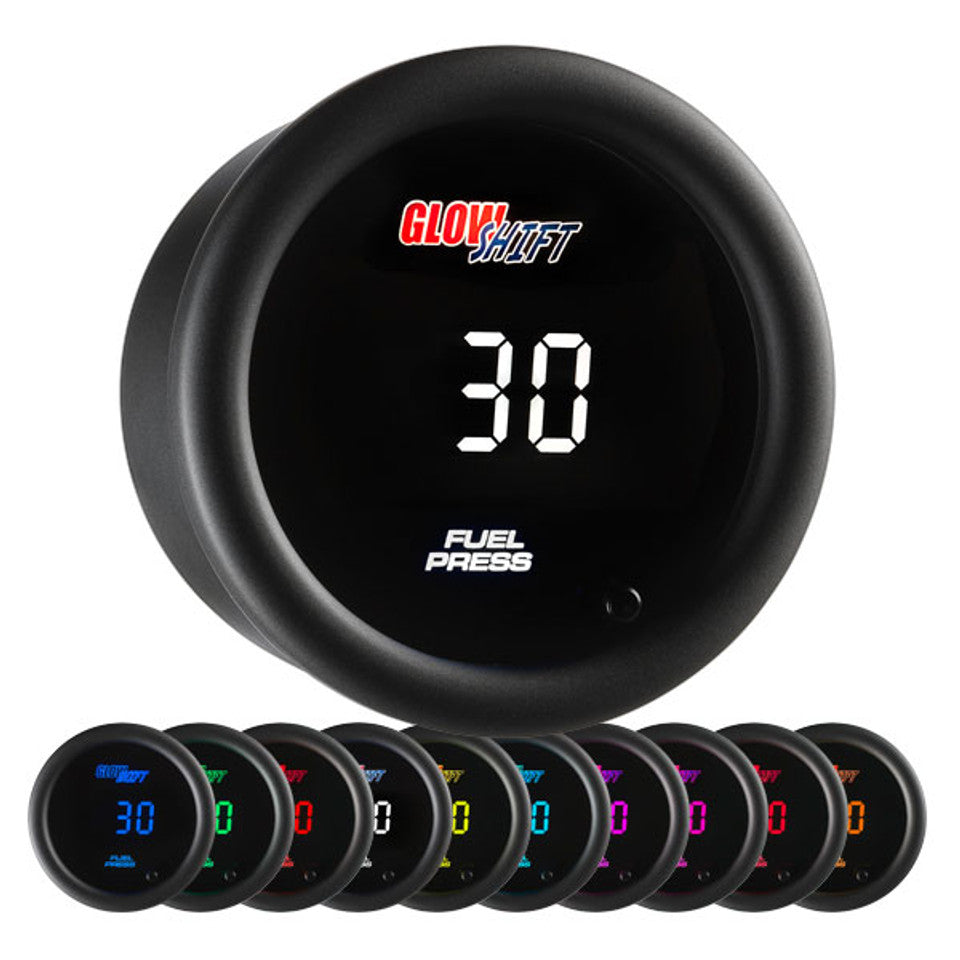

GlowShift - 10 Color Digital 30 PSI Fuel Pressure Gauge
Couldn't load pickup availability
GlowShift 10 Color Digital Series 30 PSI Fuel Pressure Gauges are electronically driven and read low fuel pressure in cars and trucks from 0 to 30 PSI. This digital fuel pressure gauge allows you to closely monitor changing pressure, ensuring your engine is maintaining optimal levels. If fuel pressure is too low and goes unnoticed, it could result in a loss of horsepower or damage to the fuel pump and injectors. This digital fuel pressure gauge kit comes with a 1/8-27 NPT Pressure Sensor, 9’ Sensor Harness and more for installation.

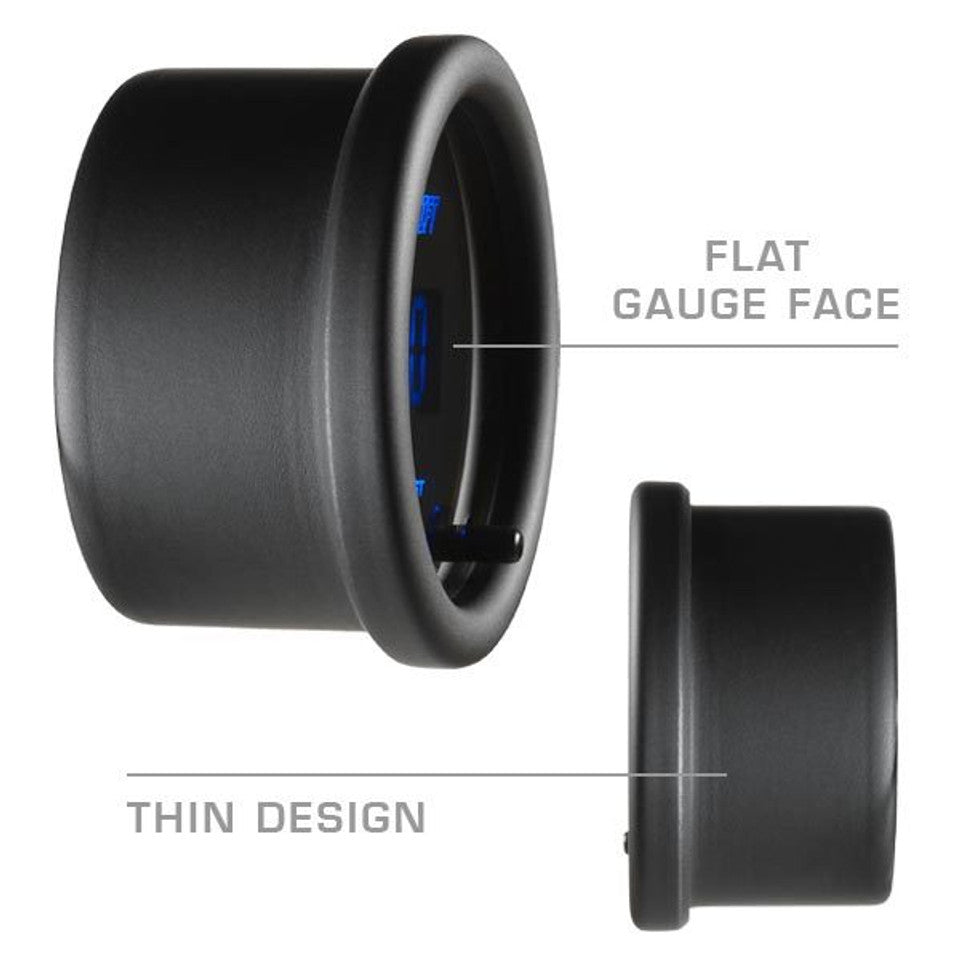

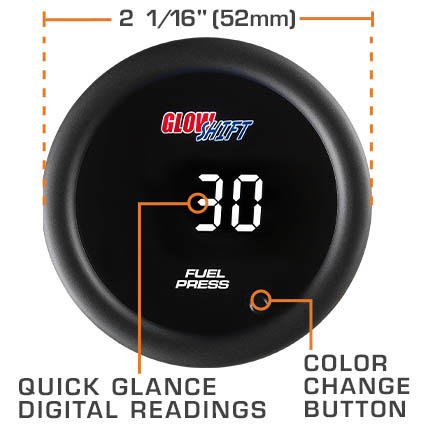

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.
FEATURES 10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series. |

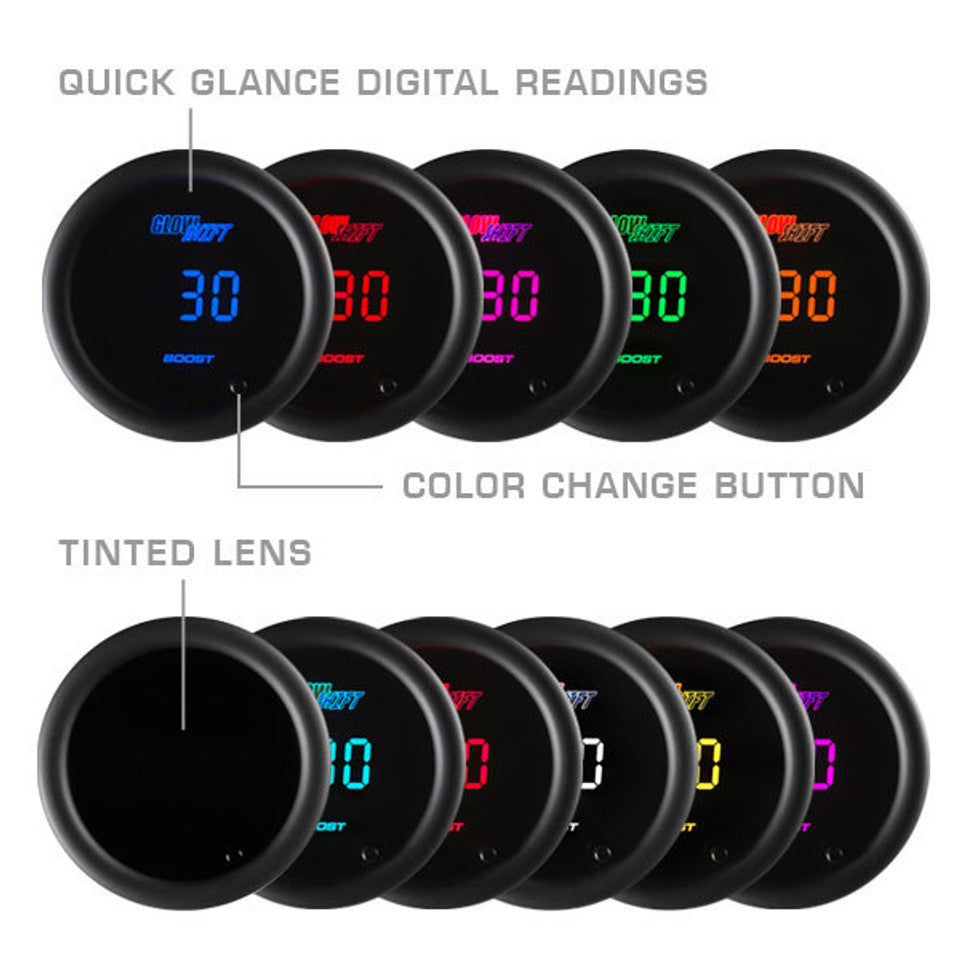

10 COLOR OPTIONS The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors. |

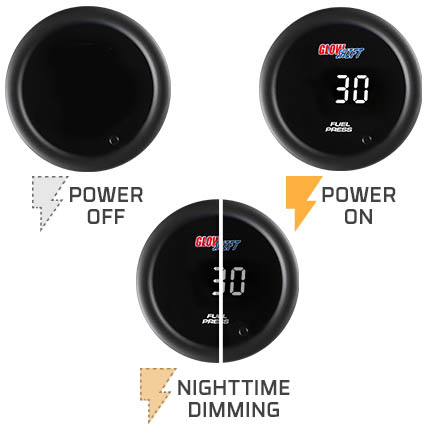

BACKLIGHTING LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on. |

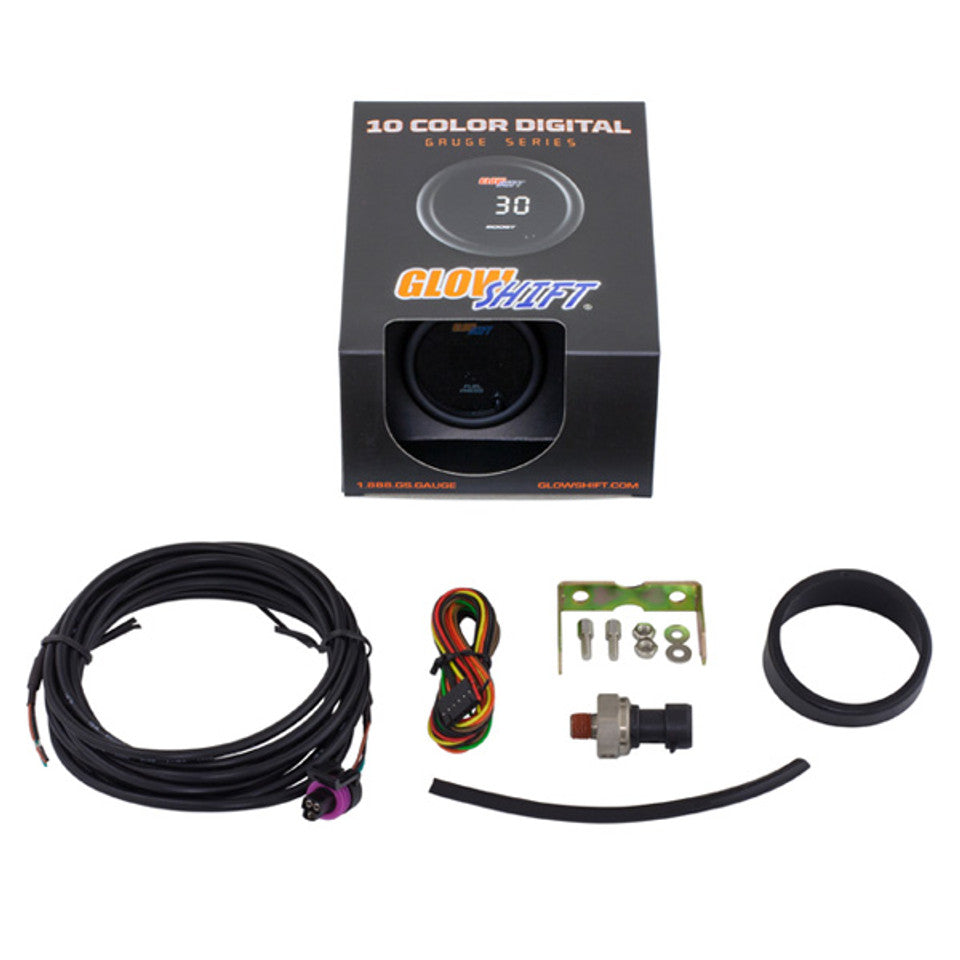

WHAT'S INCLUDED
|
SENSOR This automotive fuel pressure gauge comes with a 1/8-27 NPT Electronic Fuel Pressure Sensor. Install and connect the sensor to your vehicle’s fuel system. We recommend installing to your fuel filter housing, fuel rail or lift pump. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation. |

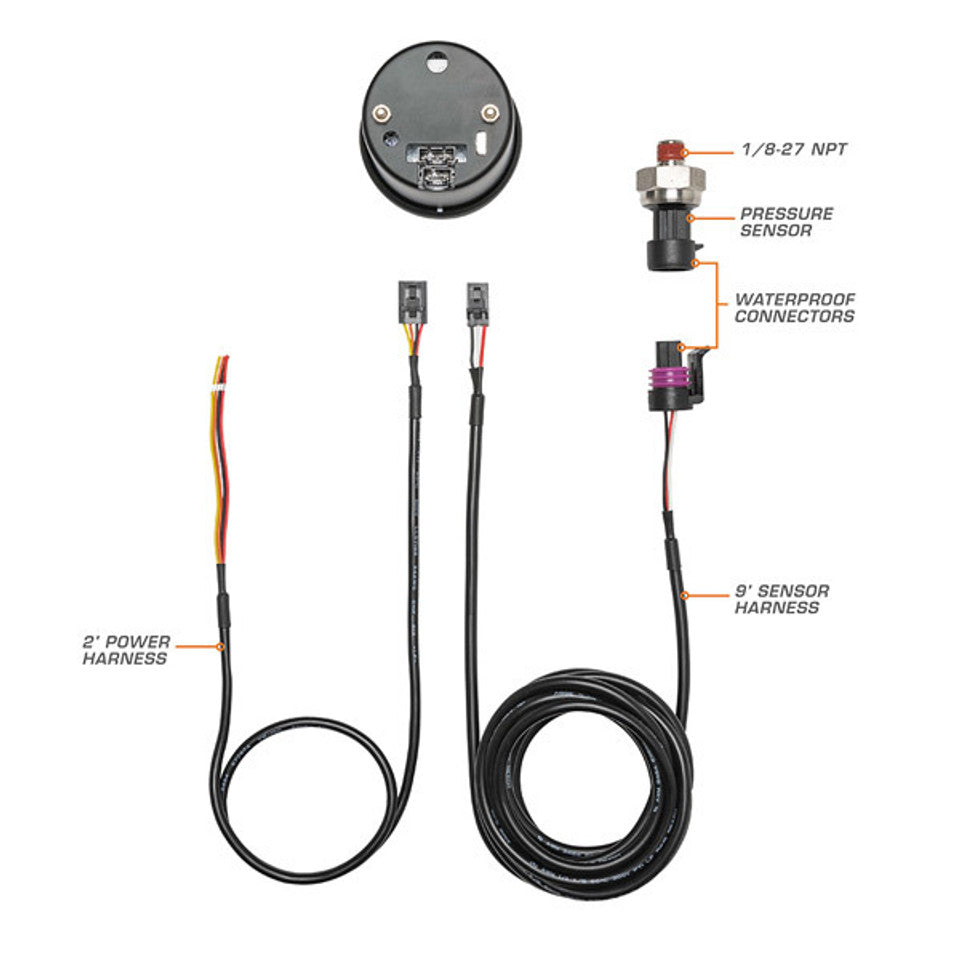

WIRING A 2’ Power Harness and 9’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation. |
MOUNTING BRACKET A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Why Do I Need a 30 PSI Digital Fuel Pressure Gauge?
Cars and trucks that run on low fuel pressure were a lot more common a few decades back. Over time, as engines demanded more, fuel pressure levels also became higher. However, with the value and interest in older and classic models, low pressure fuel systems are still seen today. GlowShift’s 30 PSI Digital Fuel Pressure Gauge is optimal for any driver looking to upgrade their factory fuel pressure gauge to a bright digital LED version. It can also be installed to older vehicles that didn’t have this gauge on the factory dash.
Diesel Truck Note
A Snubber Valve is required when installing a 30 PSI Fuel Pressure Gauge into a Dodge Ram Cummins. The Snubber Valve regulates, normalizes and eliminates fuel pressure spikes that are present during the ignition and startup on the Dodge Cummins Diesel Engine through the use of a regulator. High pressure fuel system spikes during startup are harmful and may cause early and unexpected failure of electronic fuel pressure sensors and/or sending units for fuel pressure gauges. If you are installing this electric fuel pressure gauge to a GM Duramax engine, an aftermarket lift pump is required for this gauge to function properly.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
