GlowShift - 10 Color Digital Air Pressure Gauge

GlowShift 10 Color Digital Series Air Pressure Gauges are electronically driven and read your car or truck’s aftermarket air ride suspension system, air brakes or air horn’s air pressure levels from 0 to 200 PSI. This digital air suspension gauge comes with a 1/8-27 NPT Electronic Air Pressure Sensor, 9’ Sensor Harness and more for installation. Get readings delivered with pinpoint accuracy on a responsive digital LED display.

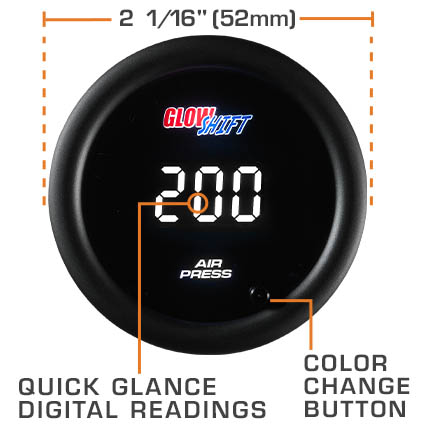

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the digital air suspension pressure gauge will dim 50%.

FEATURES 10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 COLOR OPTIONS The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

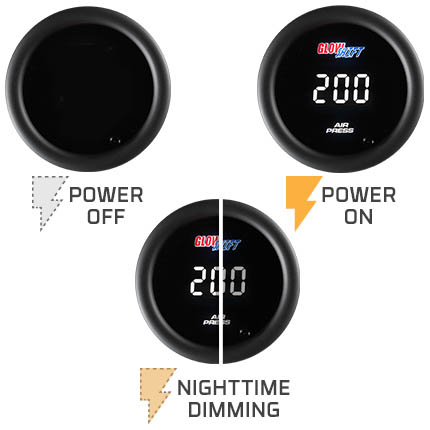

BACKLIGHTING LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

WHAT'S INCLUDED

SENSOR This car and truck digital air pressure gauge comes with an Electronic Air Pressure Sensor. Thread the sensor into the air tank or pressurized system and tighten. Connection sizes may vary from device to device. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation.

WIRING A 2’ Power Harness and 9’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the digital air suspension pressure gauge. The extended wire lengths give you added flexibility during installation.

MOUNTING BRACKET A Mounting Bracket is included with hardware which attaches the bracket to the back of the digital air suspension pressure gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.
