GlowShift - 10 Color Digital Boost/Vacuum Gauge
Couldn't load pickup availability
GlowShift 10 Color Digital Series Boost/Vacuum Gauges are electronically driven gauges that read turbo pressure from 0 to 45 PSI and vacuum compression levels from -30 to 0 inHG with unrivaled accuracy. Essential for any car or truck running a turbo or supercharger, this digital boost vac gauge displays critical pressure levels to avoid potentially serious engine damage. Each vacuum boost gauge comes with a Boost Pressure Sensor, 6' of Silocone Hose, a T-fitting and more for installation.

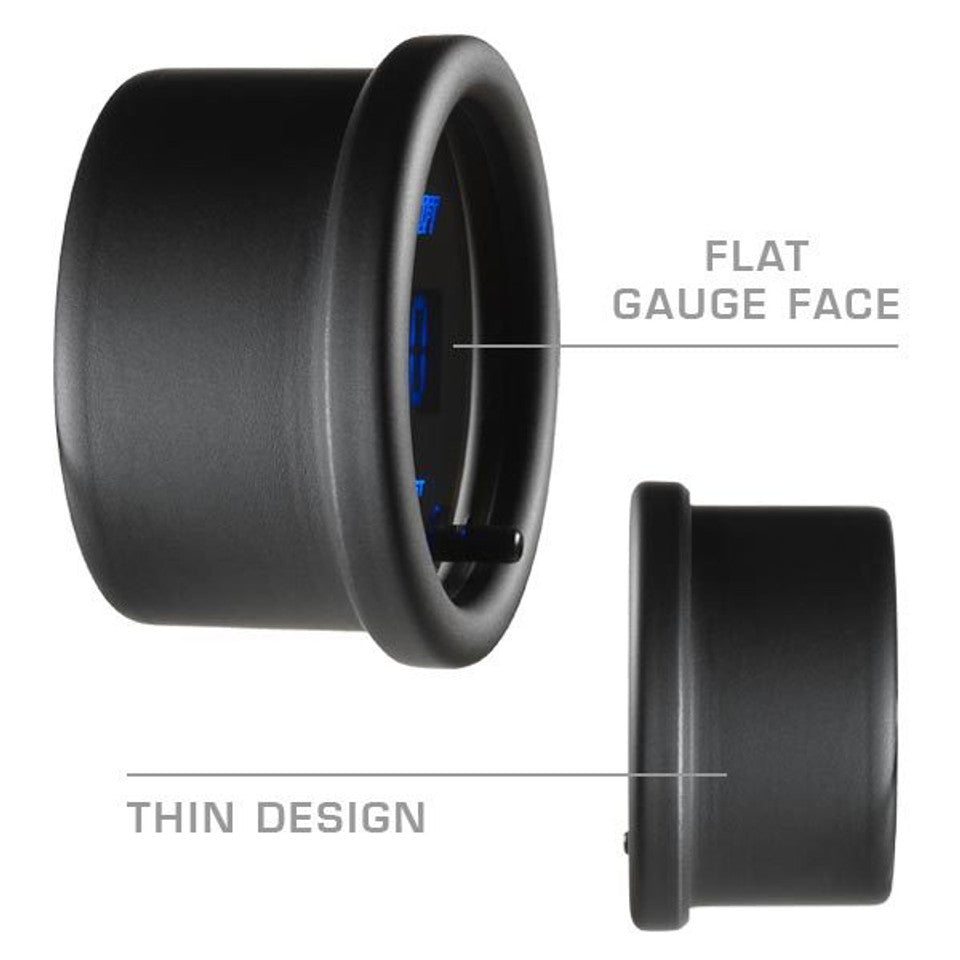

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

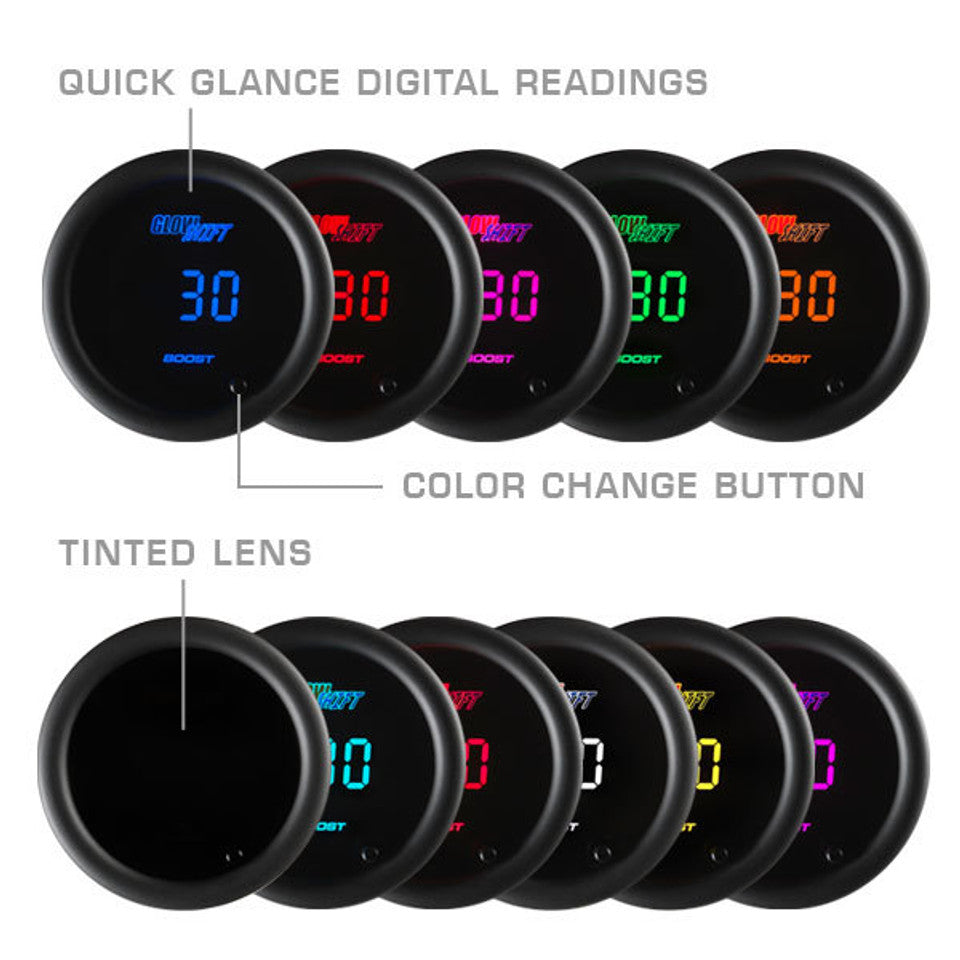

FEATURES 10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series. |

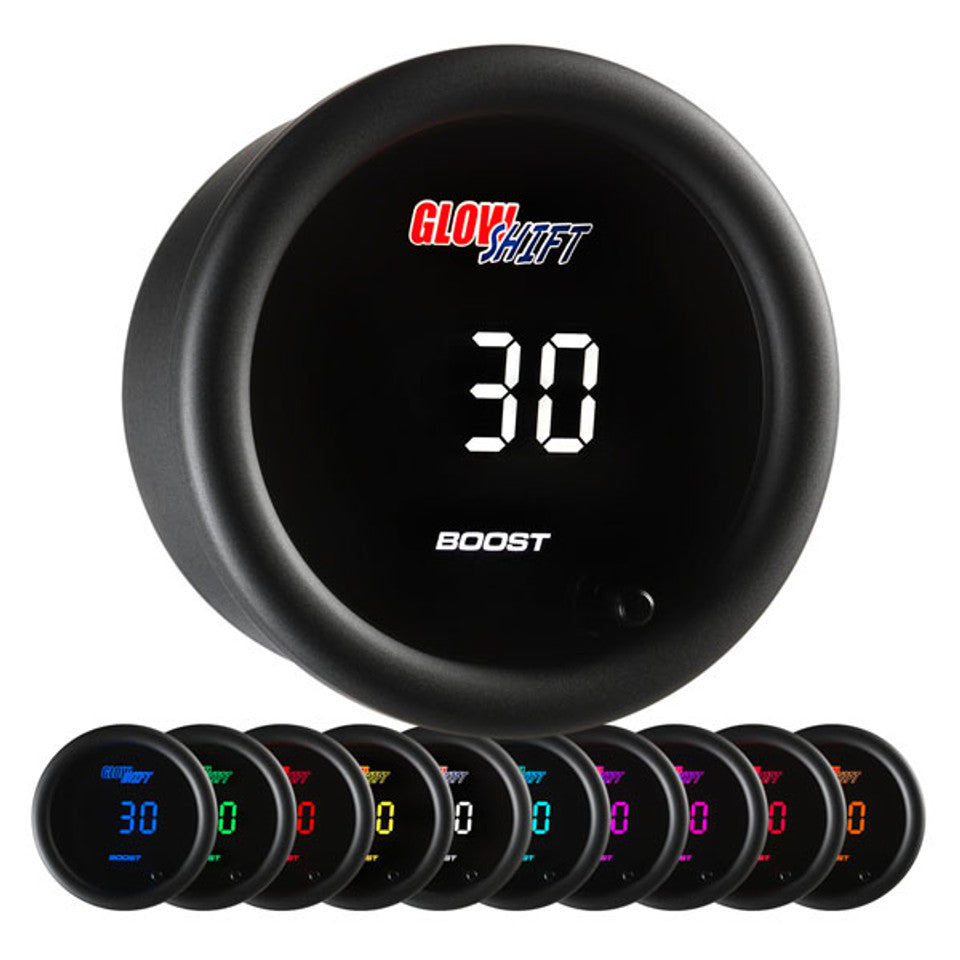

10 COLOR OPTIONS The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors. |
BACKLIGHTING LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on. |

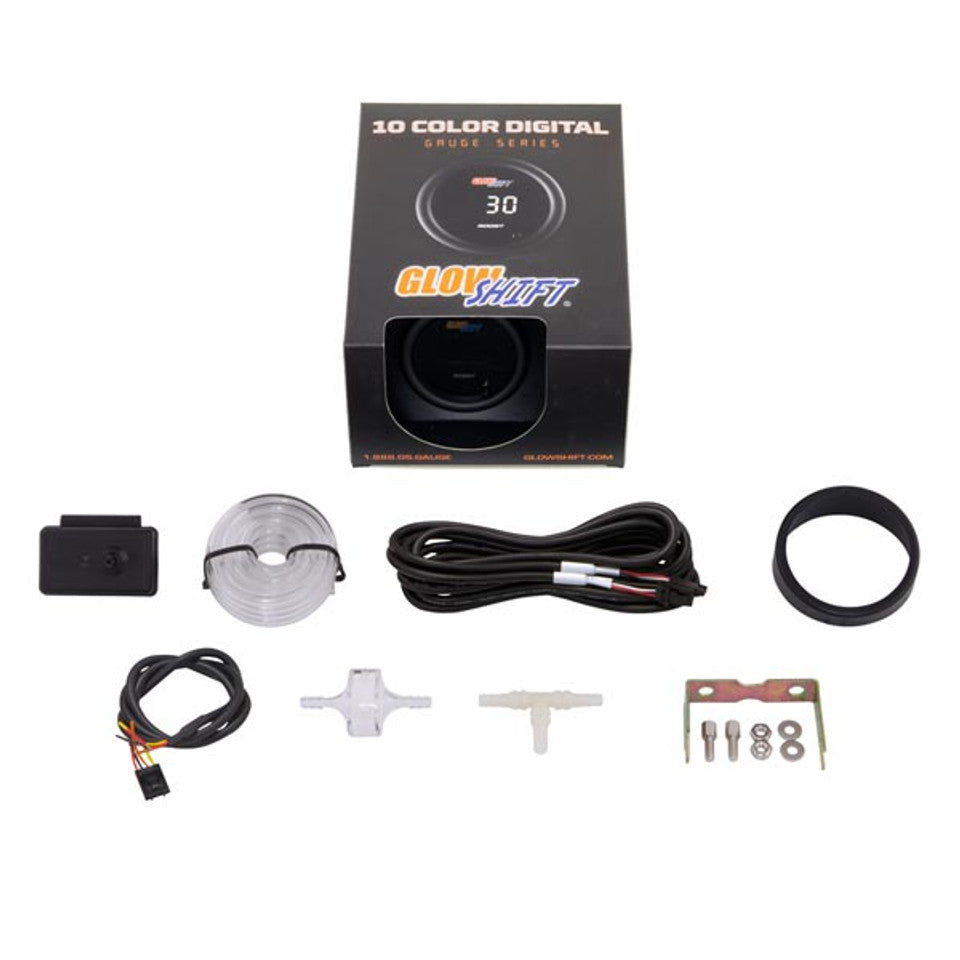

WHAT'S INCLUDED
|
ELECTRONIC SENSOR This boost and vacuum gauge comes with an Electronic Boost Pressure Sensor. Install by cutting any boost line and inserting the T-fitting between the cut lines. Once in place, attach the line to the sensor with the Air Filter also connected. |
WIRING A 2’ Power Harness and 6’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation. |
MOUNTING BRACKET A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Why Do I Need A Digital Boost Gauge?
A digital vacuum boost gauge at GlowShift delivers incredibly responsive ultra-bright LED digital readouts that help you stay on top of your car or truck’s boost levels. This electronically driven gauge uses an electronic boost pressure sensor that is installed directly to the intake manifold and sends a signal to the gauge for unrivaled accuracy. Get precise feedback on vacuum and compression levels after installing the included nylon hose and T-fitting. Especially in vehicles that have undergone aftermarket modifications, monitoring boost pressure is key in avoiding overboosting which could potentially cause engine damage or a drop in performance.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
