GlowShift - 10 Color Digital Dual Boost/Vacuum & Wideband Air/Fuel Ratio Gauge

GlowShift 10 Color Digital Series Dual Boost/Vacuum & Wideband Air Fuel Ratio Gauges monitor two key readings simultaneously. View Boost/Vacuum readings from -30 inHG to 45 PSI, and Wideband Air Fuel Ratio readouts from 10.00 to 20.00 AFR. This boost and wideband combo gauge is electronically driven and features customizable displays with bold, easy to read, quick glance digital numerical readouts. Each gauge includes Sensors, Silicone Hose with a T-Fitting, a Weld-In Bung Adapter and more for installation.

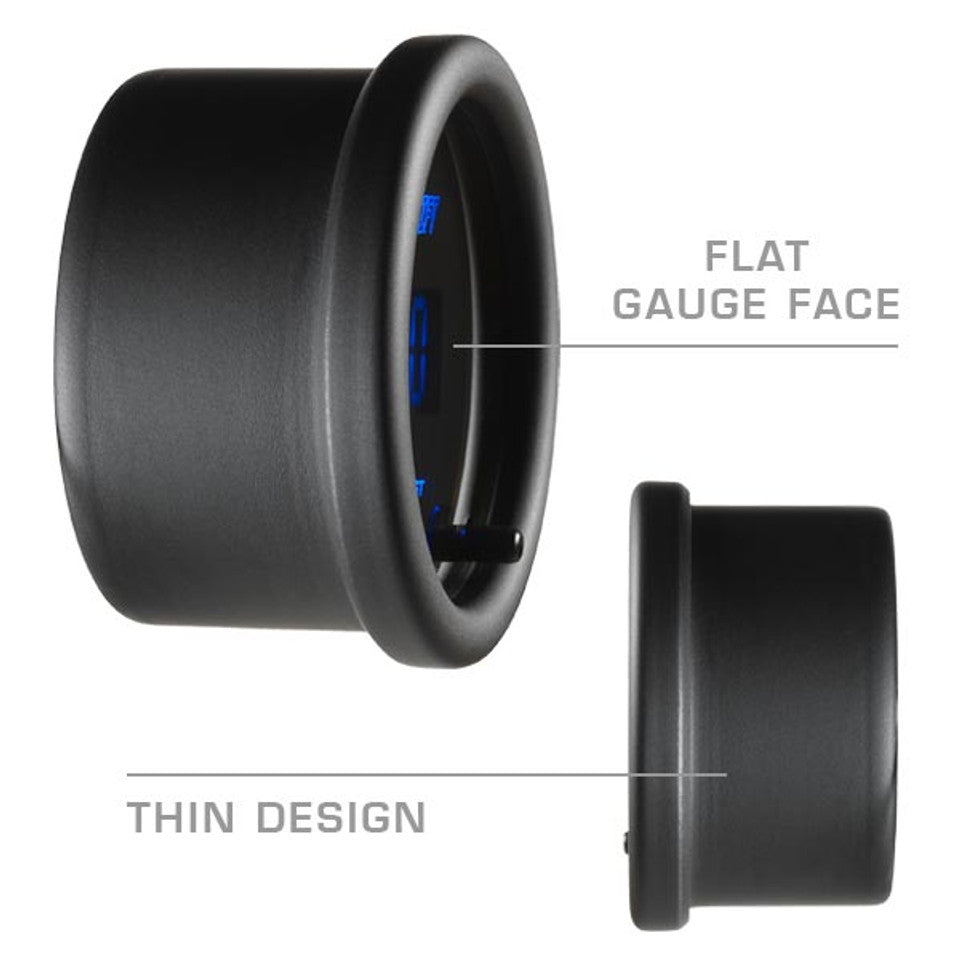

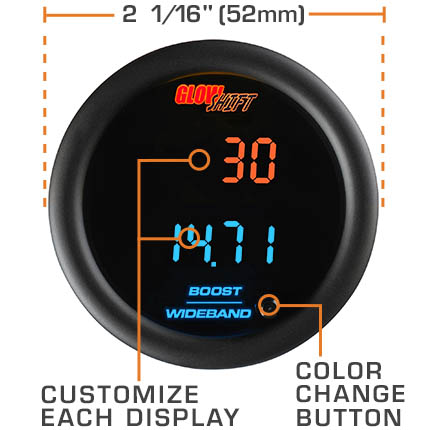

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

FEATURES 10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 COLOR OPTIONS The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

BACKLIGHTING LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

WHAT'S INCLUDED

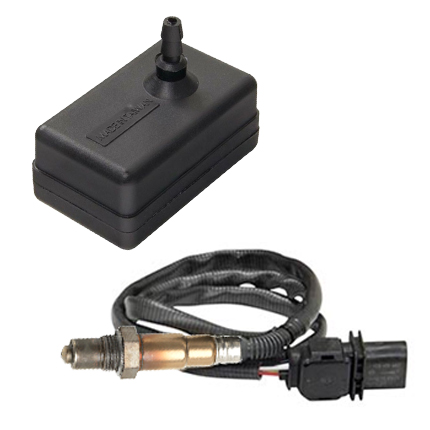

BOOST & OXYGEN SENSORS This dual digital vacuum boost and wideband AFR gauge comes with an Electronic Boost Pressure Sensor and LSU 4.9 Wideband Oxygen Sensor. Detailed instructions walk you through the installation process for both sensors step by step. The Wideband O2 Sensor includes a 30 day manufacturer’s warranty. GlowShift does not warranty this oxygen sensor after that 30 day timeframe.

CONTROL BOX & WIRING A 5’ Power Harness, 9’ Sensor Harness and 7’ Gauge Harness utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

MOUNTING BRACKET A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.
