GlowShift - 10 Color Digital Dual Celsius Temperature & BAR Pressure Gauge
Couldn't load pickup availability
GlowShift 10 Color Digital Series Dual Celsius Temperature and BAR Pressure Gauges combine both types of gauges into one. Monitor Transmission Temperature, Water Temp, Diff Temp or Oil Temp from 20° to 150° Celsius. At the same time take readings on Boost, Oil Pressure or Fuel Pressure from 0 to 9.99 BAR. This incredibly responsive gauge is electronically driven and features (2) customizable LED displays with bold, easy to read, quick glance digital numerical readouts. Included you’ll receive (2) 1/8-27 NPT Electronic Sensors, (2) 9’ Sensor Harnesses and more for installation.

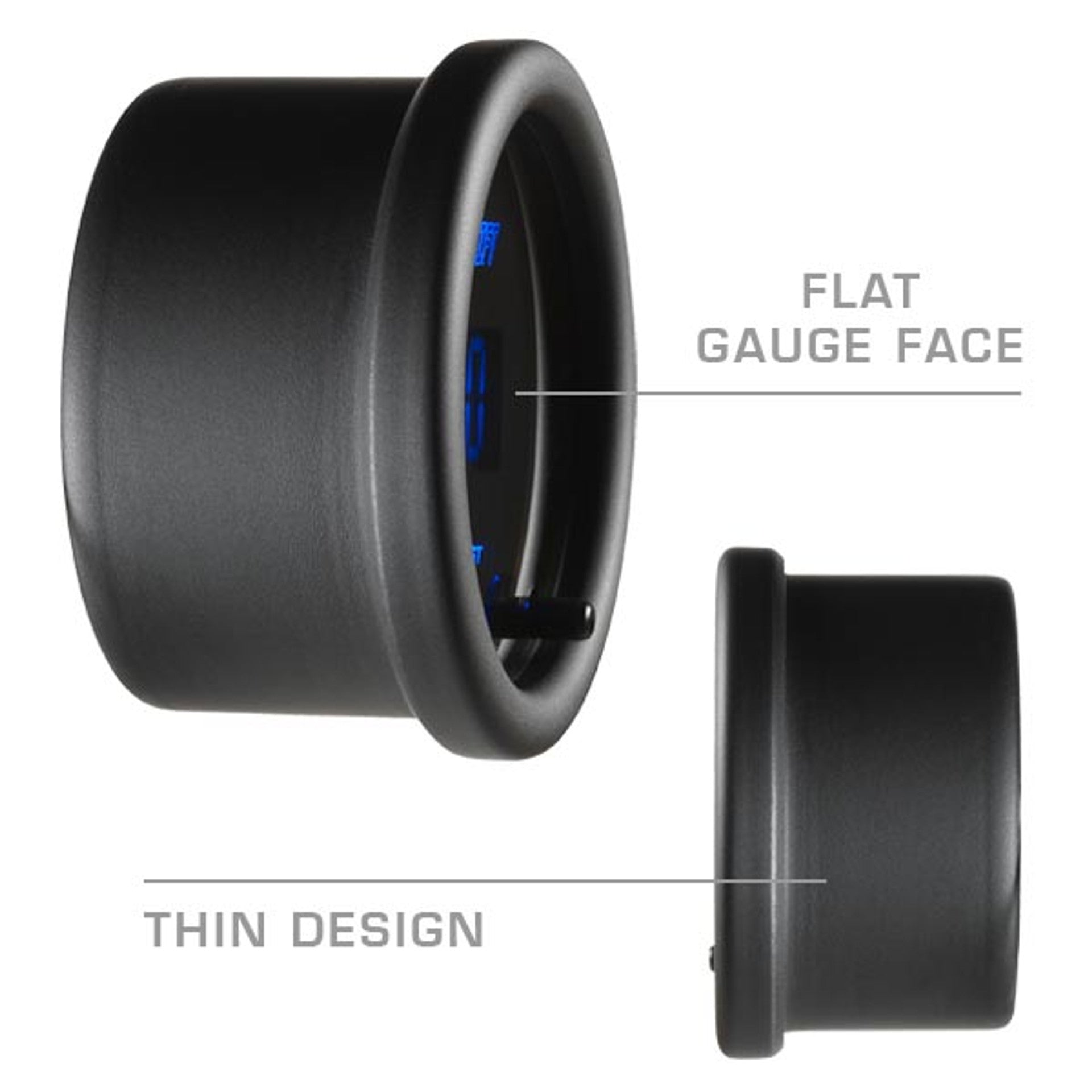

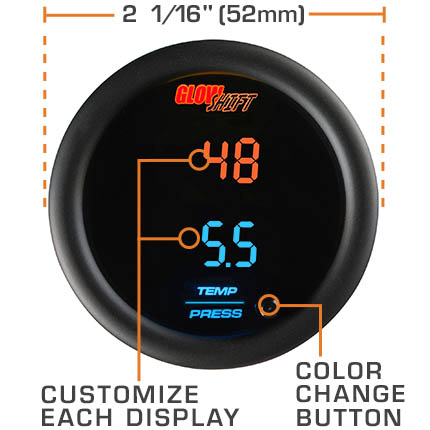

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.
FEATURES 10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series. |
10 COLOR OPTIONS The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors. |

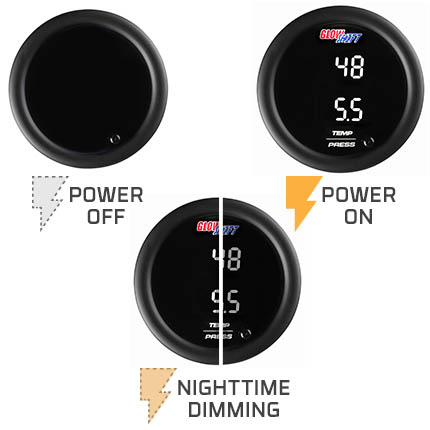

BACKLIGHTING LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on. |
WHAT'S INCLUDED
|

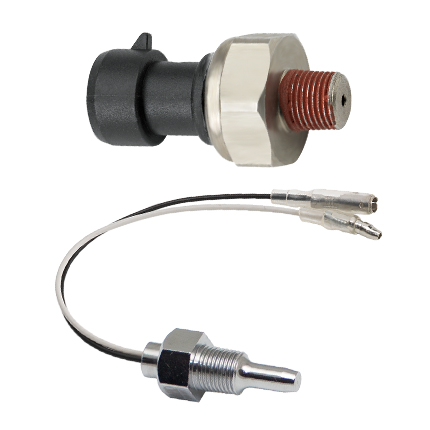

SENSORS This dual digital pressure and temperature gauge comes with a 1/8-27 NPT Electronic Temperature Sensor and 1/8-27 NPT Electronic Pressure Sensor. Detailed instructions are provided that walk you through the install options. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation. |
WIRING A 2’ Power Harness and (2) 9’ Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation. |
MOUNTING BRACKET A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Dual Digital Celsius Temp and BAR Pressure Combination Gauge Benefits
GlowShift Dual Digital Celsius Temperature and BAR Pressure Gauges deliver multiple monitoring options in one gauge. Choose from Water Temp, Transmission Temp, Oil Temp or Differential Temp settings for your Celsius temperature readings. Then select Boost, Oil Pressure or Fuel Pressure for your BAR pressure readings. The included electronic temperature and pressure sensors take care of all the hard work by keeping a close eye on changing temp and pressure levels, displaying whether they are running too high or too low.
Digital Dual Celsius Temperature and BAR Pressure Gauge Combo Readouts
Staying on top of coolant temperature ensures that it isn’t running too high which could lead to overheating and damage to the engine or radiator. Monitor transmission fluid temperature to protect against overheating. Proper oil temperature protects against harmful wear by alerting to any dips or spikes in oil temp. With diff temp readings you can keep an eye on the temperature of the gear oil in the rear differential. Make sure oil pressure levels remain optimal so that the bearings, crankshaft and other important engine parts are properly lubricated. Monitoring boost pressure is key for any vehicle running a turbo or supercharger. The right fuel pressure level in your car or truck helps to prevent damage to the fuel pump and injectors.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
