GlowShift - 10 Color Digital Quad Air Pressure Gauge

GlowShift 10 Color Digital Series Quad Air Pressure Gauges are electronically driven and read (4) sections of your vehicle’s air ride suspension system, air tanks, air bags or air horns independently. This quad digital air pressure gauge displays levels from 0 to 200 PSI, identifying if aftermarket systems are getting an adequate amount of pressure. Each quad digital air suspension gauge includes (4) 1/8-27 NPT Electronic Air Pressure Sensors, (4) 1/4-18 NPT Manifold Adapters, Wiring Harnesses and more for installation.

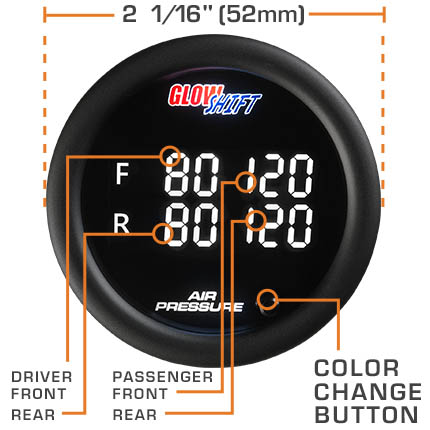

The 10 Color Quad Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify readings. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

Features 10 Color Quad Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

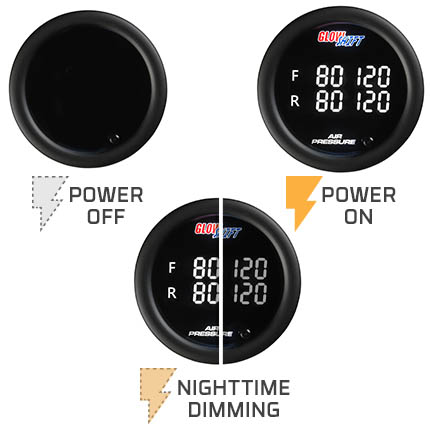

Backlighting LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

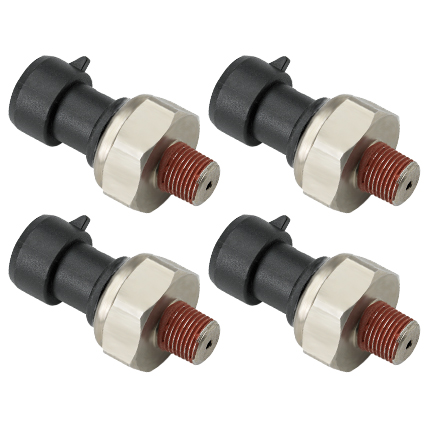

Sensors This car and truck quad digital air pressure gauge comes with (4) Electronic Air Pressure Sensors. Thread the sensors into the air management manifold, air tank, or even the valve depending on how your air ride system is set up. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation.

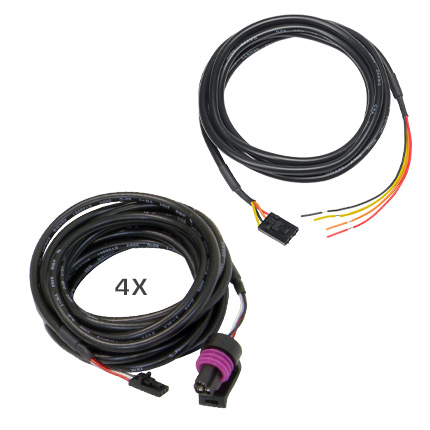

Wiring A 2’ Power Harness and (4) 18’ Pressure Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.
