GlowShift - 10 Color Digital Tachometer Gauge

Direct Ship
Regular price $62.99

Product details

  • Vendor GlowShift
  • Part # GS-TCD10

GlowShift 10 Color Digital Series Tachometer Gauges read from 0 to 9,999 RPM and can be installed to any 1 through 10 cylinder gas powered engine. This digital tach is the perfect addition to any performance vehicle. Install each of these tachometers by connecting the included Signal Wire to the negative side of your Coil, Tachometer Test Port, or by using a Tach Adapter. A Color Coded Wiring Harness, Mounting Hardware and more are provided for installation.

10 Color Digital Series

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

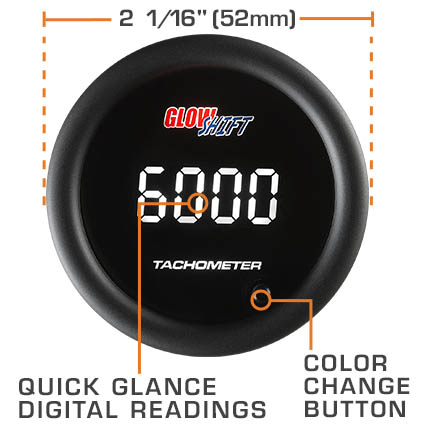

Features

10 Color Digital Series Features

10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

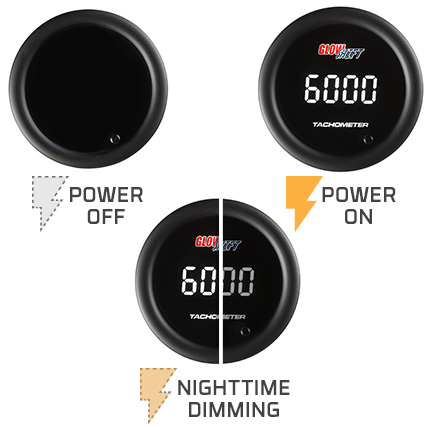

Backlighting

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Tachometer Gauge
  • 2’ Tachometer Source Wire
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Wiring

10 Color Digital Tachometer Wiring

The 2’ Color Coded Wire Harness utilizes Plug and Play Connectivity to easily snap into the modular connector on the back of the gauge. Wires are included for Power, Ground, Dimming, and the vehicle’s Tachometer Source.

Mounting Bracket

10 Color Digital Tachometer Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Gauge Visor

10 Color Digital Tachometer Visor

The gauge visor is used to protect against sun glare so that you’ll have a clear view of readings during the day. This visor easily slips onto the digital tach gauge with the wider portion positioned at the top.

Note For Multiple Coil Systems

Our Tachometers are only designed for a gasoline, single coil application. For multiple coil applications, the use of a multiple coil or aftermarket ignition system adapter is required. Vehicles equipped with High Energy Ignition Systems (HEI) will require GlowShift’s HEI Signal Filter.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
