GlowShift - Black 7 Color 100 PSI Fuel Pressure Gauge
Couldn't load pickup availability
GlowShift’s Black 7 Color Series 100 PSI Fuel Pressure Gauge gives you the ability to monitor fuel pressure levels from 0 to 100 PSI in the gas or diesel engine of your car or truck. Having this gauge will help ensure that your vehicle’s fuel pressure is running at optimal levels, and is not too low which could result in loss of horsepower or damage to your fuel pump or injectors. The included 1/8-27 NPT Electronic Fuel Pressure Sensor features a small, compact design and can be installed directly to your fuel system for extremely accurate readings.
GlowShift’s Black 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.
Features The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge. |

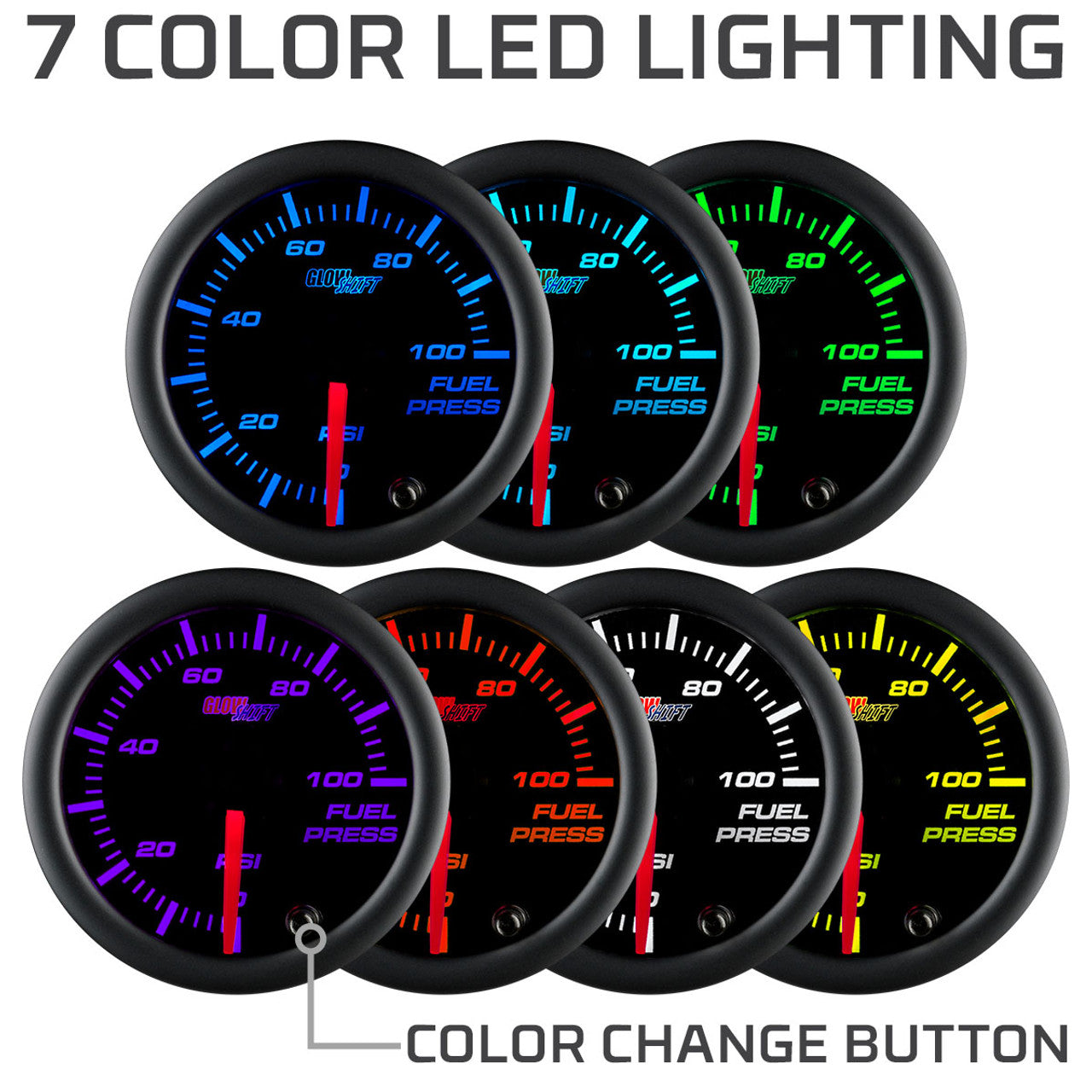

7 Color Options Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle. |
Backlighting This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the black gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on. |
What's Included
|

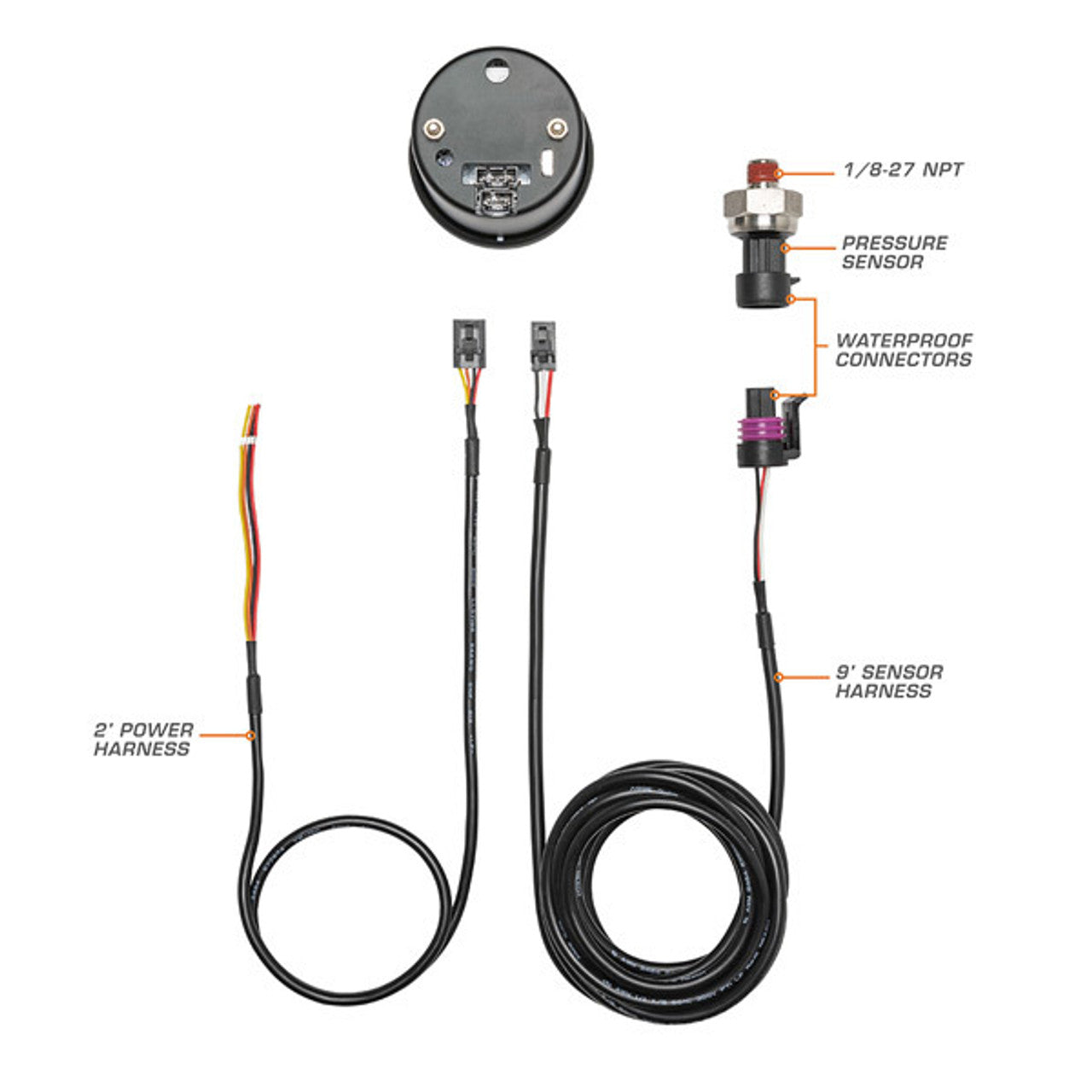

Sensor The Electronic Fuel Pressure Sensor with 1/8-27 NPT Male Threads is compact and can be easily installed directly to your car or truck’s fuel system. Take readings from 0 to 100 PSI with unrivaled accuracy. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation. |
Wiring A 2’ Power Harness and 9’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation. |
Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Benefits Of A Fuel Pressure Gauge Kit
A vehicle’s fuel system performs multiple tasks, one of which is regulating the pressure of the fuel being supplied by the fuel pump. Through the use of the fuel pressure regulator, you can adjust how much fuel pressure is needed during different RPMs. If any issues occur with the supply of fuel, pressure levels can be thrown out of balance and the result could be poor performance, possible engine damage, and other critical concerns. Common issues that can lead to fuel pressure irregularities include a damaged fuel pump or a clogged oil filter.
Why Do I Need A 100 PSI Fuel Pressure Gauge?
A fuel pressure gauge is the right choice for any car or truck that has undergone aftermarket modifications. Higher fuel pressure equates to increased fuel delivery, something which is typically seen in many vehicle upgrades. In racing applications, if boost capacity has been increased, changes to the fuel pressure system should also take place incrementally. Another example of a vehicle that has undergone aftermarket modifications is a truck which has been overhauled to cover long distances with heavy amounts of cargo.
Extended Harness
The optional 7 Color Series Extended 18' Sensor Harness is ideal for any aftermarket lift pump that is located at the rear of the truck. This 18' sensor harness will replace the included 9' sensor harness of your gauge if it is not long enough to reach the desired location of your sensor. This sensor harness effortlessly snaps into the 1/8-27 NPT sensor and the back of the electric fuel pressure gauge.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
