GlowShift - Tinted 7 Color BAR Boost Gauge
Couldn't load pickup availability
GlowShift’s Tinted 7 Color Series BAR Boost/Vacuum Gauge is for anyone running a turbo or supercharger in their vehicle. This 52mm (2-1/16 in) mechanically operated turbo boost gauge will monitor your vehicle’s boost and vacuum levels from -1 to 2 BAR.
GlowShift’s Tinted 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge face, analog display, illuminated red needles and a low profile magnified tinted lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your car or truck by adding a gauge that delivers readings with pinpoint accuracy at the same time.

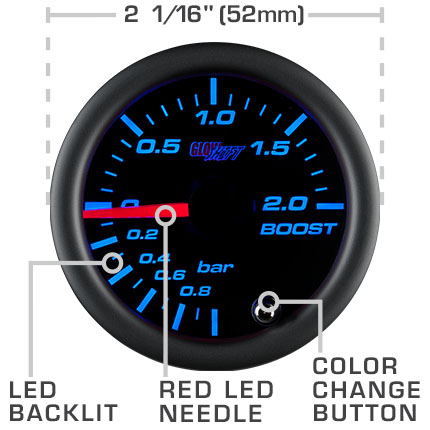

Features The illuminated red needles that this gauge is equipped with sweep 270° and are powered by stepper motor technology, giving you an effective combination of incredibly precise gauge readings and extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge. |
7 Color Options Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle. |

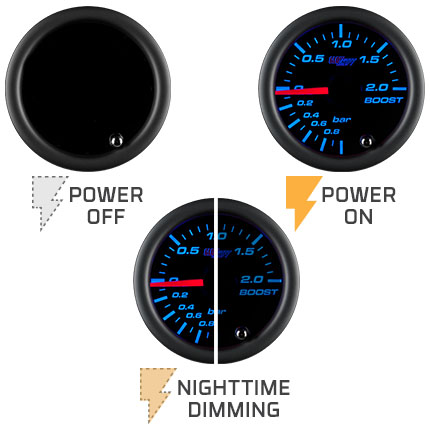

Backlighting This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look amazing courtesy of the black gauge face and magnified tinted lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you’ll be able to dim the gauge 30% when the headlights are on. This feature will help you to reduce brightness and glare while viewing readings at night. |

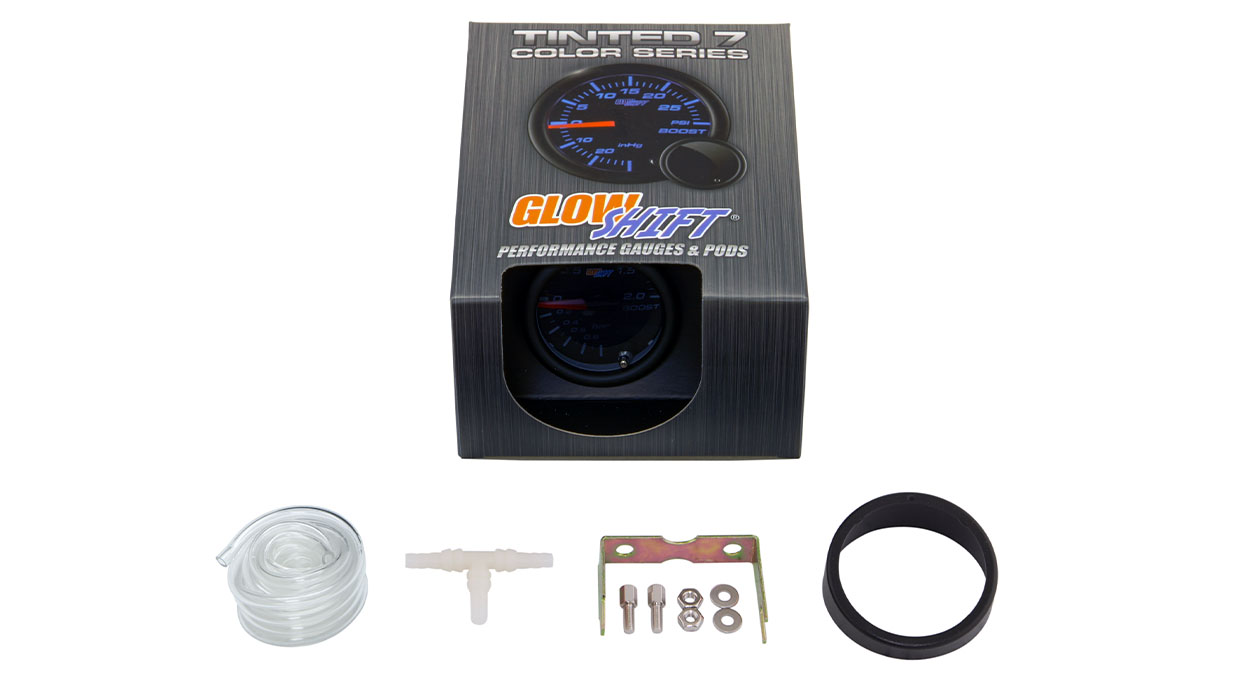

What's Included
 |
|
Hose & T-Fitting This mechanical boost/vacuum gauge kit comes with a 1/8” T-fitting and 6’ of PVC Vacuum Line with a 1/8” inner diameter. A significant upgrade to a standard hose, you can easily tap any vacuum line connected to your Intake Manifold. |
Wiring The included 2’ Power Harness is attached to the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The extended wire length also provides added flexibility during installation. |
Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Why Do I Need A BAR Boost Vacuum Gauge?
A car boost gauge is essential for any driver because it will monitor BAR boost pressure levels, which can change over time if you’re making modifications to your vehicle. It will also provide readings on the levels of vacuum in your engine. This feature can be extremely useful for tuning purposes relating to your turbo or supercharged engine. Plus you’ll have the added benefit of monitoring your engine for any potential setbacks and poor-performance indicators.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
