GlowShift - White 7 Color Dual Intake Temperature Gauge
Couldn't load pickup availability
GlowShift’s White 7 Color Series Dual Intake Temperature Gauge enables you to monitor the efficiency of your vehicle’s intercooler system with two independent analog needles that read from 0 to 300° Fahrenheit. This 2-1/16” (52mm) dual intercooler air temperature gauge will measure the hot air being forced into your intercooler and the cool air being pushed into the engine.
GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.
Features The illuminated needles that this gauge is equipped with sweep 270° and are powered by stepper motor technology, giving you an effective combination of incredibly precise gauge readings and extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge. |

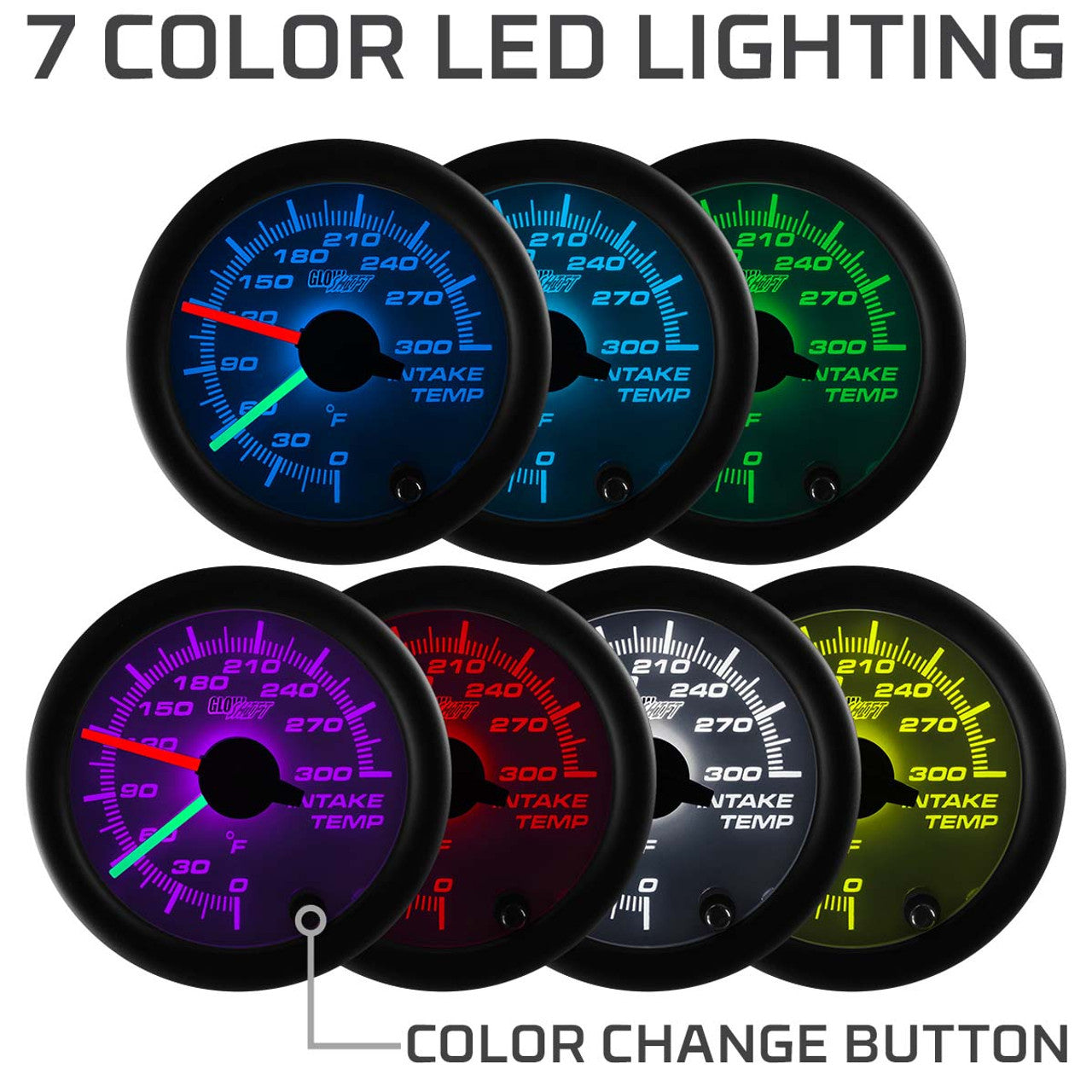

7 Color Options Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle. |
Backlighting This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on. |
What's Included
|
Sensors The Electronic Intake Temperature Sensors with 3/8-18 NPT Male Threads can be installed directly to Pre-Intercooler and Post-Intercooler locations, respectively. Take readings from 0 to 300° Fahrenheit with unrivaled accuracy. |
Wiring A 2’ Power Harness and 9’ Pressure Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation. |
Mounting Bracket A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable. |
Who Needs A Dual Intake Manifold Temperature Gauge?
GlowShift’s intercooler temp gauge was made for any car or truck, monitoring the performance of a gas or diesel engine’s intercooler. An intercooler’s responsibility is cooling hot intake air. This will result in increased power and better engine performance in turbocharged and supercharged engines. Using the best intercooler air temp gauge available to monitor these temperatures will help you ensure that your engine’s intercooler is working optimally.
Optional Weld-In Bungs
Adding the 3/8-18 NPT Weld-In Bung Set allows you to install and thread the Dual Air Intake Gauge Sensors to the pre and post locations of your vehicle’s intercooler. This set features (2) 3/8-18 NPT aluminum thread adapters that are easily welded to the intercooler pipe.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
